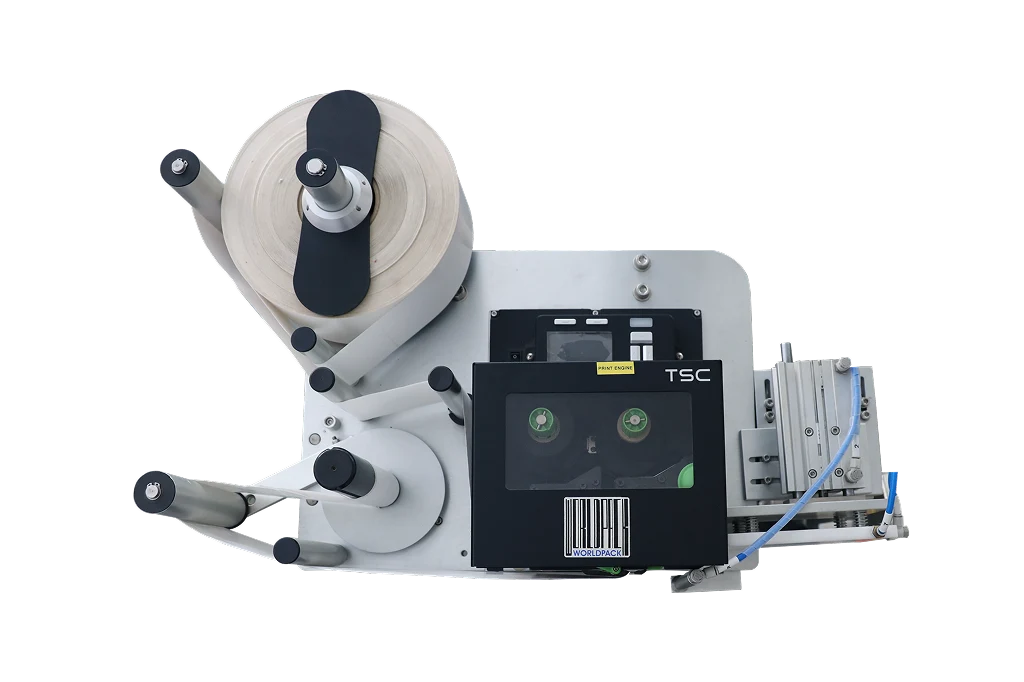

Print and Apply Machine
Worldpack Print and Apply Machine can print labels/barcodes for up to 30 bottles per minute and offers labor saving, consistency and minimal error. This machine is made of 304 stainless steel and uses paper for label material & can print and apply labels on containers of varied sizes and shapes. Equipped with the latest features like an electric panel interlock, rejection system for bad cartons, label roll end alarms and vision system for wrong and unclear barcodes, these machines also have standard features like air pressure interlock, 3 level password protection and a color screen for easy accessibility. This labeller is ideal for both front face labelling and ‘L’ type labelling.
Technical Specifications
SPEED | : | 10 - 15 CPM |
ROLL O.D. | : | 280MM |
LABEL MATERIAL | : | PAPER |
LABEL DIMENSIONS | : | MAX LABEL HEIGHT: 100MM MAX LABEL LENGTH: 150MM |
MOC | : | SS 304 |
POWER SUPPLY / CONSUMPTION | : | 220VAC / 50HZ / SINGLE PHASE / 1.5KW |
OPERATING SYSTEM | : | ALLEN BRADLEY SYSTEM WITH TOUCH SCREEN HMI |
MACHINE DIMENSIONS | : | 2500MM X 1200MM X1900MM (L X B X H) |
WEIGHT | : | 350 KGS |

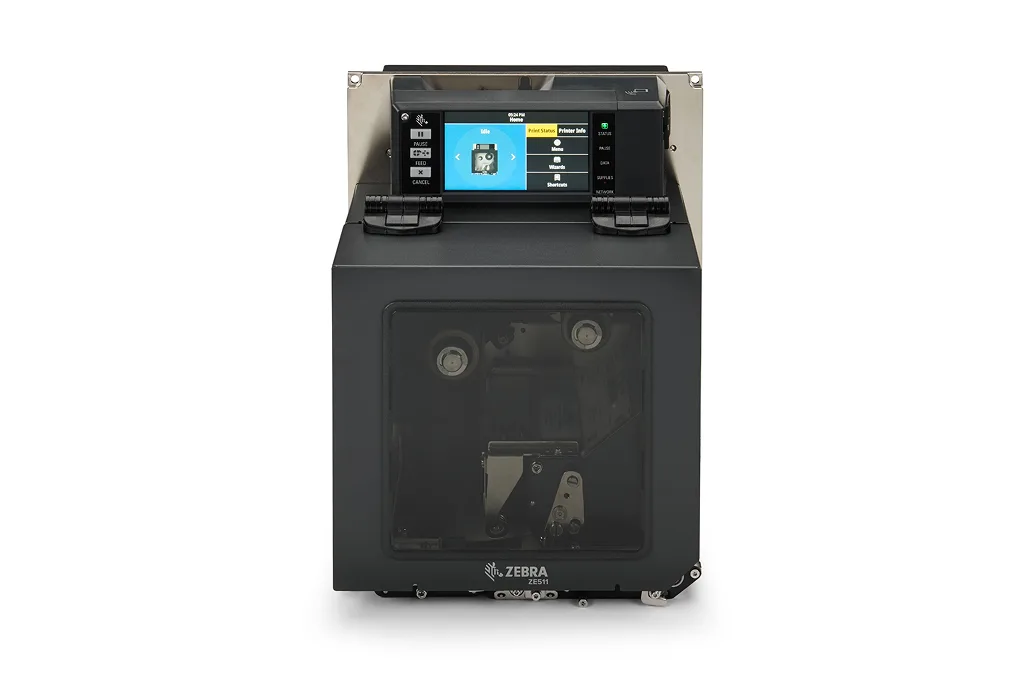

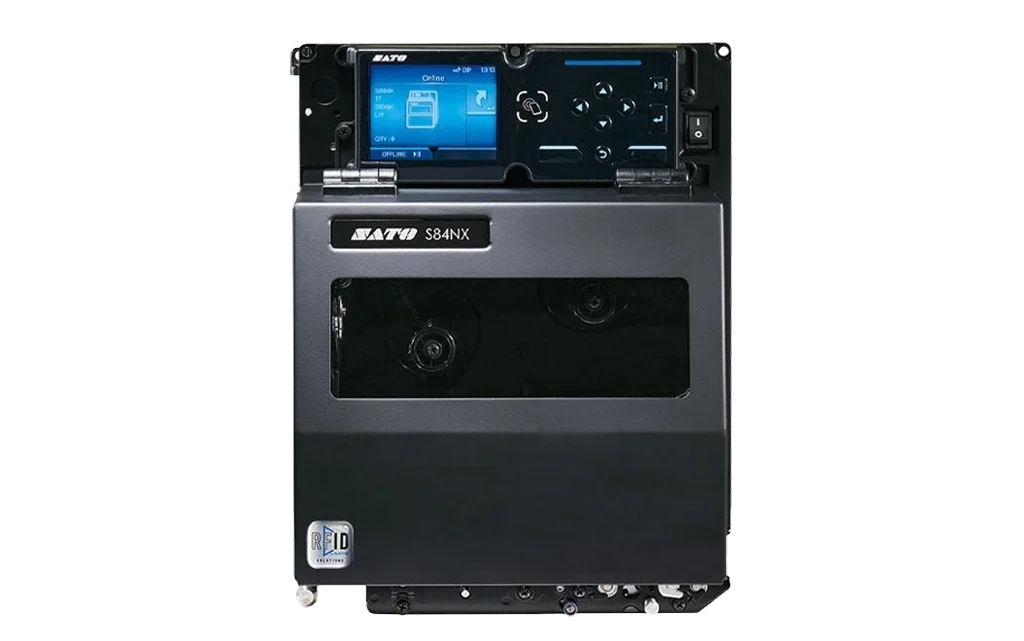

PRINTER | : | SATO / ZEBRA PRINT ENGINE |
APPLICATION | : | FRONT / TOP / CORNER |
OPTIONAL | : | SAFTEY COVER OVER APPLICATOR |
STANDARD FEATURES
- Suitable for front face labelling and "L" type labelling (front and leading surface)
- Air pressure interlock
- 3 level password protection
- 7 inch colour touch screen for easy accessibility
OPTIONAL FEATURES
- Safety cabinet with interlocks
- Electrical panel door interlock
- Rejection system for "NOT OK" cartons
- Label roll end alarm
- Vision system for wrong barcode, unclear barcode
- Interlock for upstream machine ready
